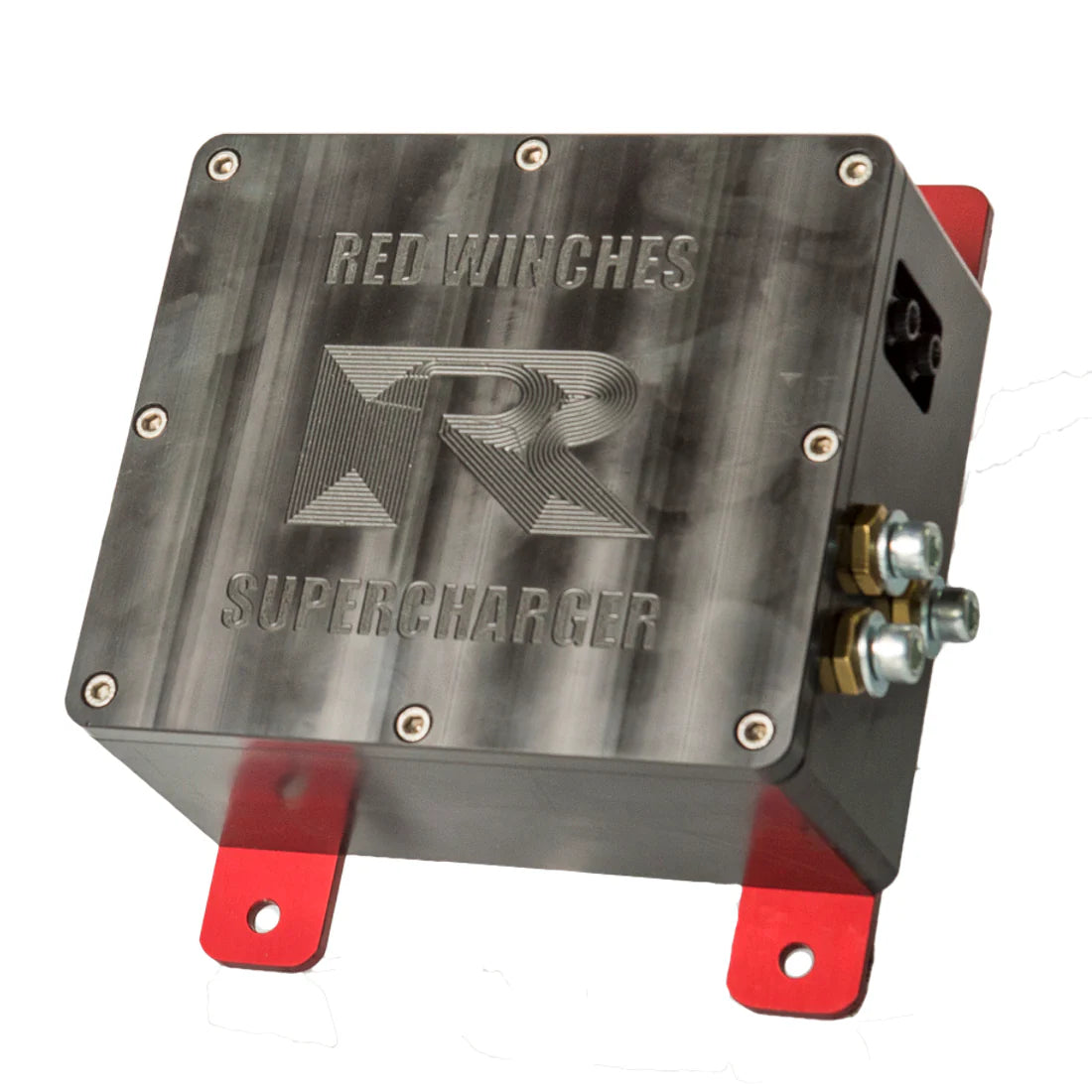

RED Winches Winch Upgrade - Supercharger 12V to 24V System

A RED Winch-designed unit that allows you to switch the power to your winch between 12volt & 24volt Red Winches’ Supercharger product has been designed and developed with 4×4 competition in mind.

This Supercharger unit allows you to run 12v and 24v from the 12v setup on your truck for single-motor and twin-motor winches without the need for a 24v alternator.

The electrical components are housed in a CNC machined Delrin housing, and the supercharger is fitted with a breather that a 6mm airline can be fitted to raise the breather to a higher level on the vehicle.

Key Features

• Compact & lightweight
• Fully waterproof to IP68 with a breather port
• Fuse protected and rated at 500A normal use, 750A Peak (30secs)
• Fix your own length of cabling
• Provides constant 24v supply so you can winch in and out on 24v Easy fitting and electrical connections.

Fitment Notes

• Not suitable for use with quad motor winches.
• When in 24v mode the auxiliary battery is not being charged.
