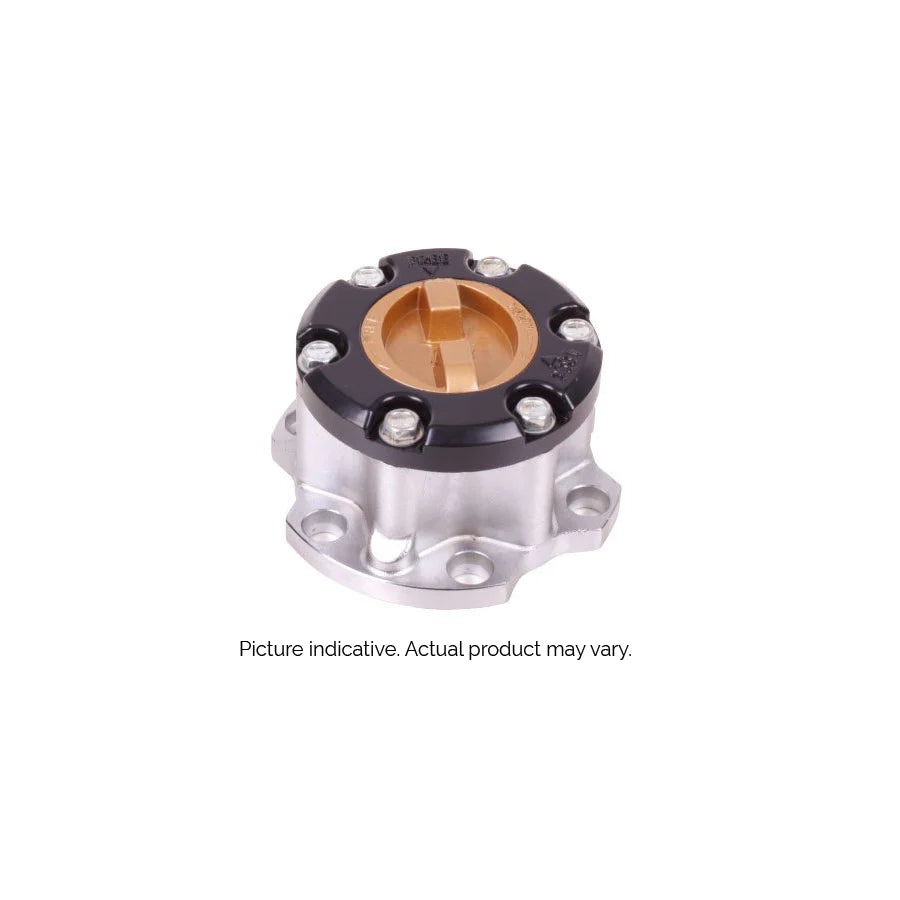

Free Wheeling Hubs - 30 Spline Steel Base Aisin Style - Toyota Landcruiser & Hilux

Free wheeling hubs feature an OEM style design offering excellent strength and reliability in a cost-effective replacement for your 4wd vehicle.

In many cases these 4WD locking hubs will outperform other OEM options in terms of durability especially in more extreme 4×4 installs with larger tyres.

Sold singly (each). Order two for a pair.

Key Features

• 30 Spline
• Steel Base
• Aisin style
• Easy to install

These hubs are suitable for the following vehicles:

• Toyota Land Cruiser 40, 45, 55, 60, 70 and 70 Series – 1976 – 1992
• Toyota Land Cruiser 75, 80 Series (see fitment notes below)
• Toyota Hilux 1979 - 1985
• Toyota Hilux Beam Axle Front only models 1986 - 1997

Fitment Notes

Toyota Land Cruiser 70, 73 & 74 Series

When changing from electric hubs to the F00521 free wheeling hubs you will also need to purchase the following:

• F00TSPC x 1 - Pair of electric hub spacers
• F00TSR x 12 - Toyota split cone washers

Toyota Land Cruiser 80 Series

• Short cv/stub was until 1996 - 26mm factory drive flange thickness
• Long cv/stub was 1994 onwards - 35mm factory drive flange thickness - so two years possible cross over
• F00521 will fit short stub/cv (25mm drive flange)

Toyota Land Cruiser Prado LJ / KZJ 78/71 Series

When changing from electric hubs to the F00521 free wheeling hubs you will also need to purchase the following:

• F00TSPC x 1 - Pair of electric hub spacers
• F00TSR x 12 - Toyota split cone washers

In order for product warranty to be valid, the free-wheeling hubs must be fitted by a suitably qualified installer. We can arrange installation at Cape To Ranges HQ in Hastings for an additional charge, or we can refer you to an installer in your area.

Some hub models require partial disassembly of the free wheeling hub (normally removal of the hub top section from the hub base). If they are not refitted I installed correctly, this may cause premature hub failure, which is not covered under warranty.

If you are not qualified or do not understand the complete installation procedure for your model hub please seek professional assistance in order for the free wheeling hub warranty to remain intact.
